With our team of highly trained project managers and over 20 years experience we have created over 2000 molds! Computer-aided Manufacturing and Engineering, stringent Mold Validation techniques (Window Study, Taguchi Method) and quick turnaround keeps us highly competitive. Trend Engineering exports to Europe, North America, Israel and Japan

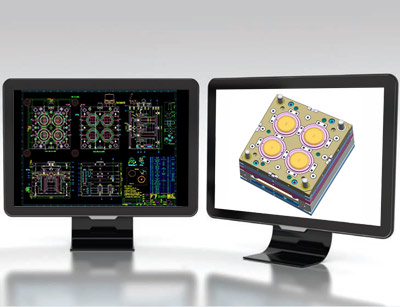

Mold Design

Utilizing leading industry software such as Unigraphics NX and SOLIDWORKS our design team can build a full representation of the mold, which includes generating core and cavity from the part model, parting-line splits, optimization of surfaces, mold-base selection, cooling lines, runner systems, gates, slides, lifters, ejectors, spacers, guides, nozzles, screws, and pins

Machining Center

The mold is usually made of metal and created using CNC ( Computerized Numerical Control ) machining processes of milling, turning, grinding. Trend has a vast array of in-house machining equipment (detailed below) to achieve the requirement of a particular mold structure.

Electric Discharge Machining

EDM is a manufacturing process whereby a desired shape is obtained by using electrical discharges. Creating a controlled and localized spark of electricity of intense heat affecting the surface of metal. EDM can achieve the high-precision machining required for the manufacturing of die and mold parts better than any other tool.

Grinding

Grinding in a moldmaking shop is fundamental for the overall success of any injection moldmaking operation. From beginning to end, the grinding process provides squareness, a high level of accuracy and superior surface finish. Precision grinding in plastic injection moldmaking is essential in order to produce high quality, high volume molds.

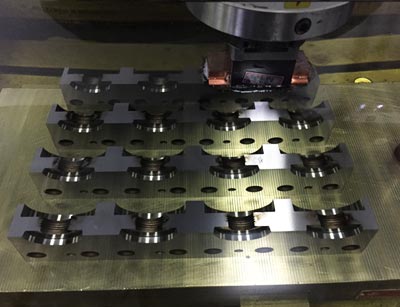

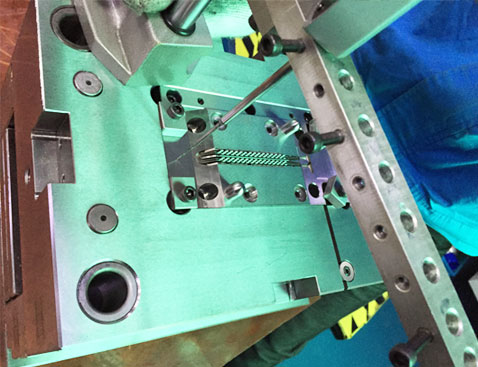

Mold Fitting & Assembly

Mold assembly is one of the most critical stages of the mold making procedure, all the parts machined or purchased need to be put together and are required to function perfectly. The quality of mold assembly determines the mold precision and the efficiency of plastic injection productivity.

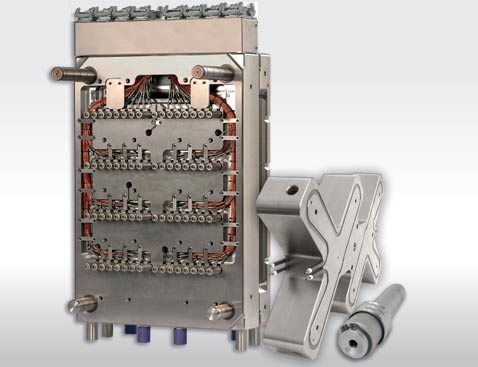

Hot Runner System

Hot runner systems are a means to convey molten plastic from injection molding machines into molds, ensuring proper flow rate and pressure, while maintaining optimum temperature levels. They are essential to managing and controlling melt distribution in the injection molding process while enhancing productivity, product aesthetics, energy efficiency, performance, reduced part cost and reduced wastage.

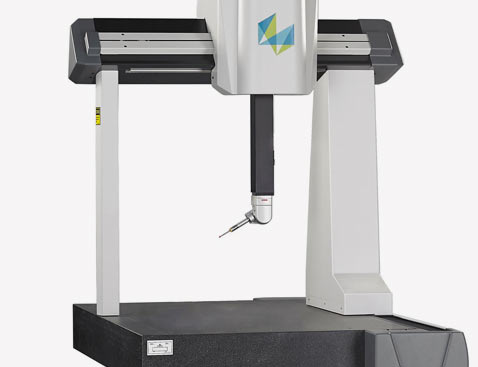

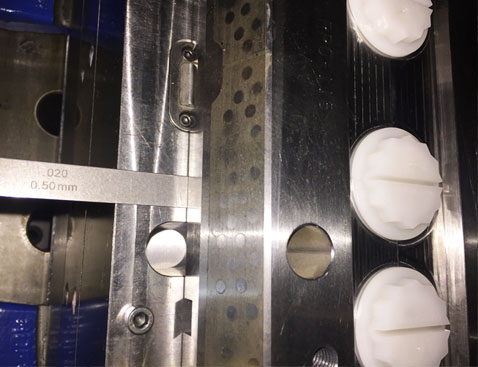

Inspection & Measurement

Verifying that a mold and part’s dimensions all conform to the design tolerances required is crucial to efficient plastic part product. Inspection and measuring is carried out with our coordinate measurement machines and software, probes, vision systems, balance machines, calibrators and scanners.

Mold Testing & Validation

Strict & accurate quality control for each manufacturing process is essential to meet customer quality expectations all necessary regulatory, quality and commercial standards.. Trend has precision measuring equipment, quality control systems and procedures and a highly trained team to ensure exceptional quality of our molds and products.

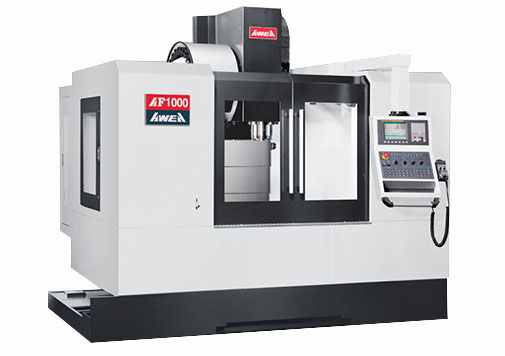

CNC Milling

AWEA AF1000
X, Y, Z, Travel 1020X551X600mm
10000rpm
With 3R holder

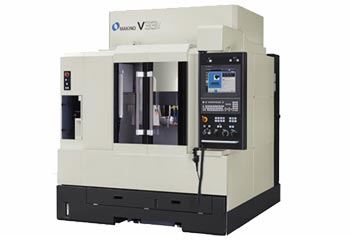

CNC Milling

MAKINO V33i
X, Y, Z Travel: 650 x 450 x 350mm

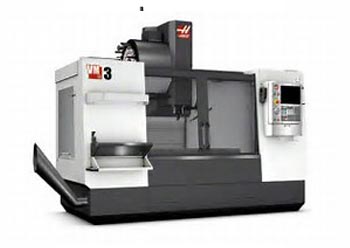

CNC Milling

HASS VM-3
X, Y, Z Travel: 1016 x 660 x 635mm
12000rpm
with inline inspection

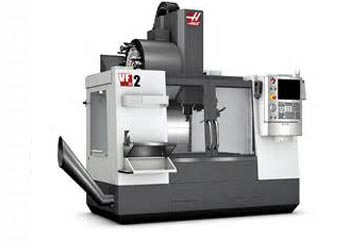

CNC Milling

HASS VM-2
X, Y, Z Travel: 762 x 508 x 508mm
12000rpm
with inline inspection

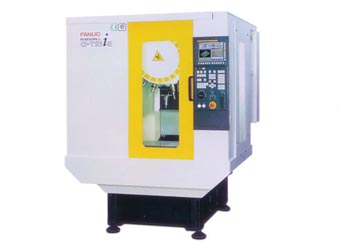

CNC Milling

FANUC D14MiA
X, Y, Z Travel: 500 x 400 x 330mm
24000rpm
with 3R holder

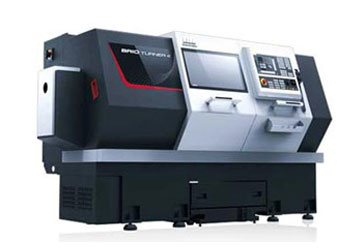

CNC Lathe

BRIO Tuner 5 BRT5085
Diameter 500mm
3000rpm

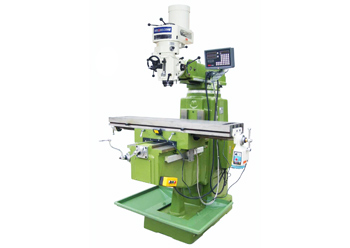

Milling

SENDA 5S
X, Y, Z Travel: 800 x 400 x 300mm

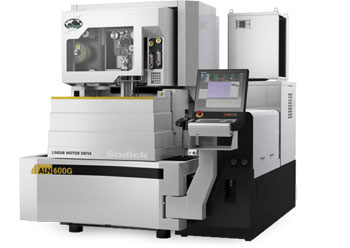

EDM Wire

SODICK ALN600
X, Y, Z Travel: 600 x 400 x 350 mm

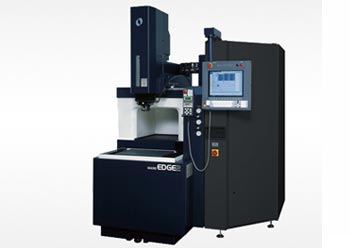

EDM Sinker

MAKINO EDGE3
X, Y, Z Travel: 450 x 300 x 320mm
3 Axis/ 3R System

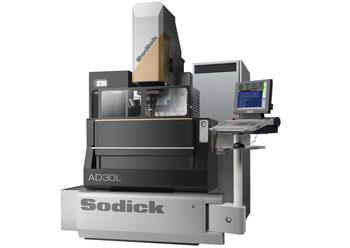

EDM Sinker

SODICK AM30Lxs
X, Y, Z Travel: 350 x 250 x 250mm
3 Axis/ 3R System

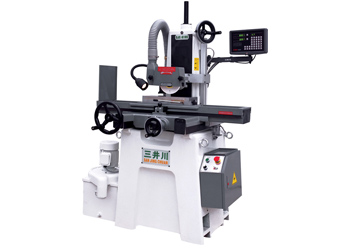

Surface Grinding

MITSUGAWA SJC-614SA
X, Y, Z Travel: 300 x 200 x 260mm

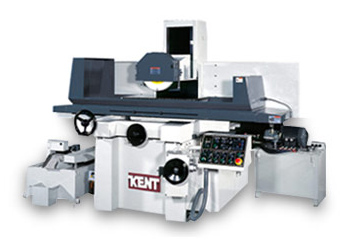

Surface Grinding

KENT
X, Y, Z Travel: 650 x 450 x 450mm

Surface Grinding

ZHUNLI SJC-618SA
X, Y, Z Travel: 350 x 200 x 320mm

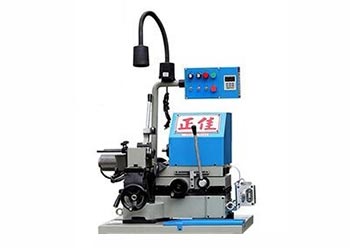

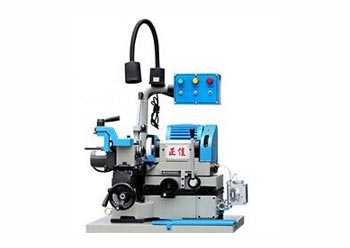

Inner Cylindrical Grinding

ZHENGJIA ZJ-N010
X, Y, Z Travel: 20 x 200mm

Outer Cylindrical Grinding

ZHENGJIA ZJ-W010
X, Y, Z Travel: 50 x 250mm

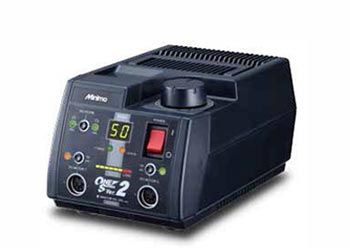

Polishing

MINITOR Minimo One Series
Ver. 2 CM5012

Mould building standards:
Mold standards: Class 4 Class 3 Class 2 and Class 1 moulds.
Mold steel: ASSAB (UDDEHOLM in Sweden), AISI-USA, FINKL, DAIDO(Japan), Local equivalent
Mold base: DME, HASCO, Customized mold frame
Hot runner: Mold Master, HUSKY, YUDO, INCOE, Polyshot etc
Standard parts: DME, HASCO, MISUMI, Legris, etc.
Texture: Mould-tech, NIHON Etching, Yick Sang etc.
Mold components coating: CrN, Chrome plated, DLC, Nano coating, etc.
